MechFlow V1 - Mechintel Dual Optical Flow + DTOF LiDAR Sensor Module for Drones (UART/I2C)

MechFlow V1 - Mechintel Dual Optical Flow + DTOF LiDAR Sensor Module for Drones (UART/I2C)

Rs. 2,999.00 INR
Rs. 2,999.00 INR
Sale Sold out
Shipping calculated at checkout.
Fast Delivery Made in India
Trust Guaranteed Expert Support
Made in India QC VERIFIED
Made in India FAST PAN-INDIA SHIPPING

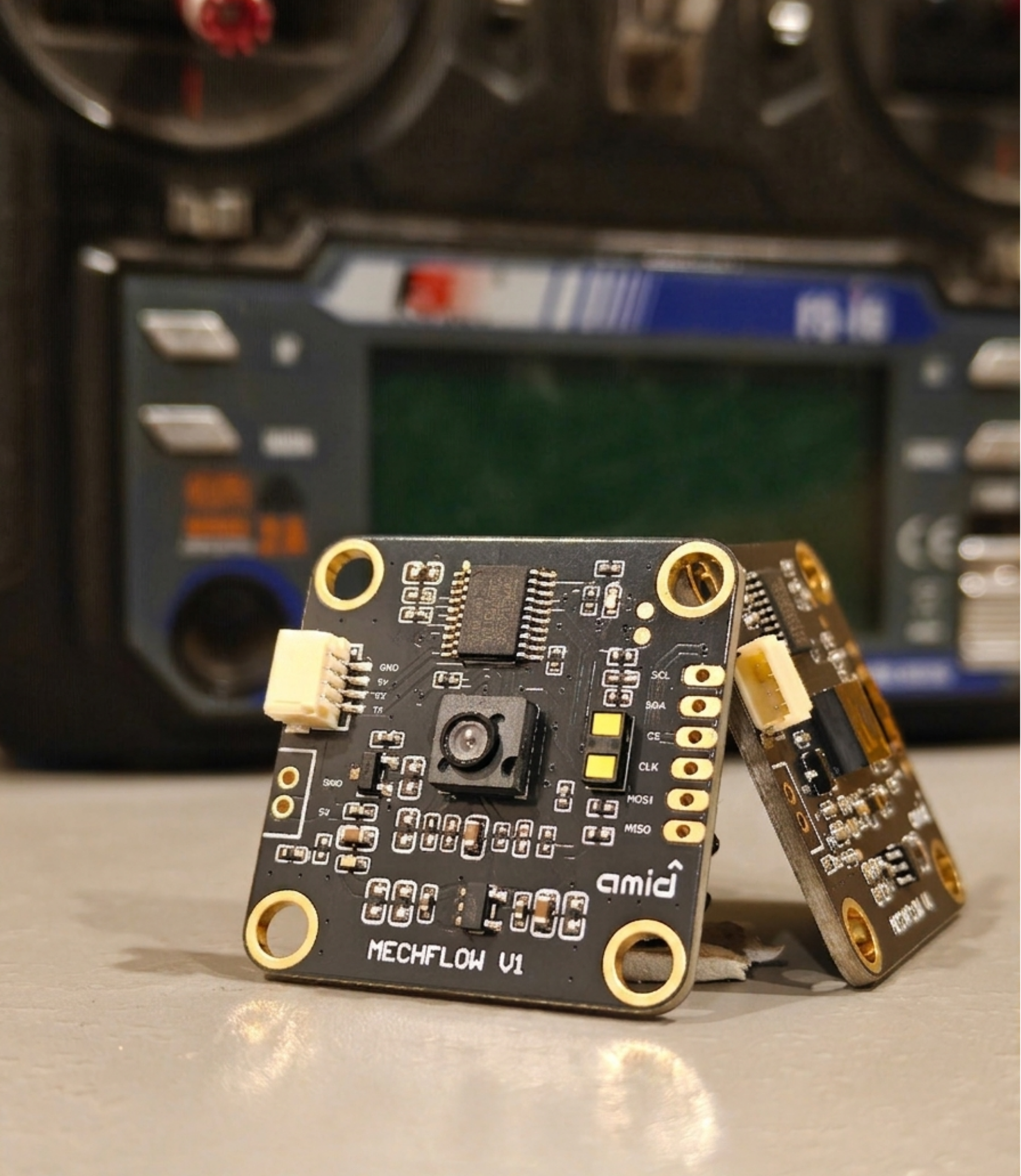

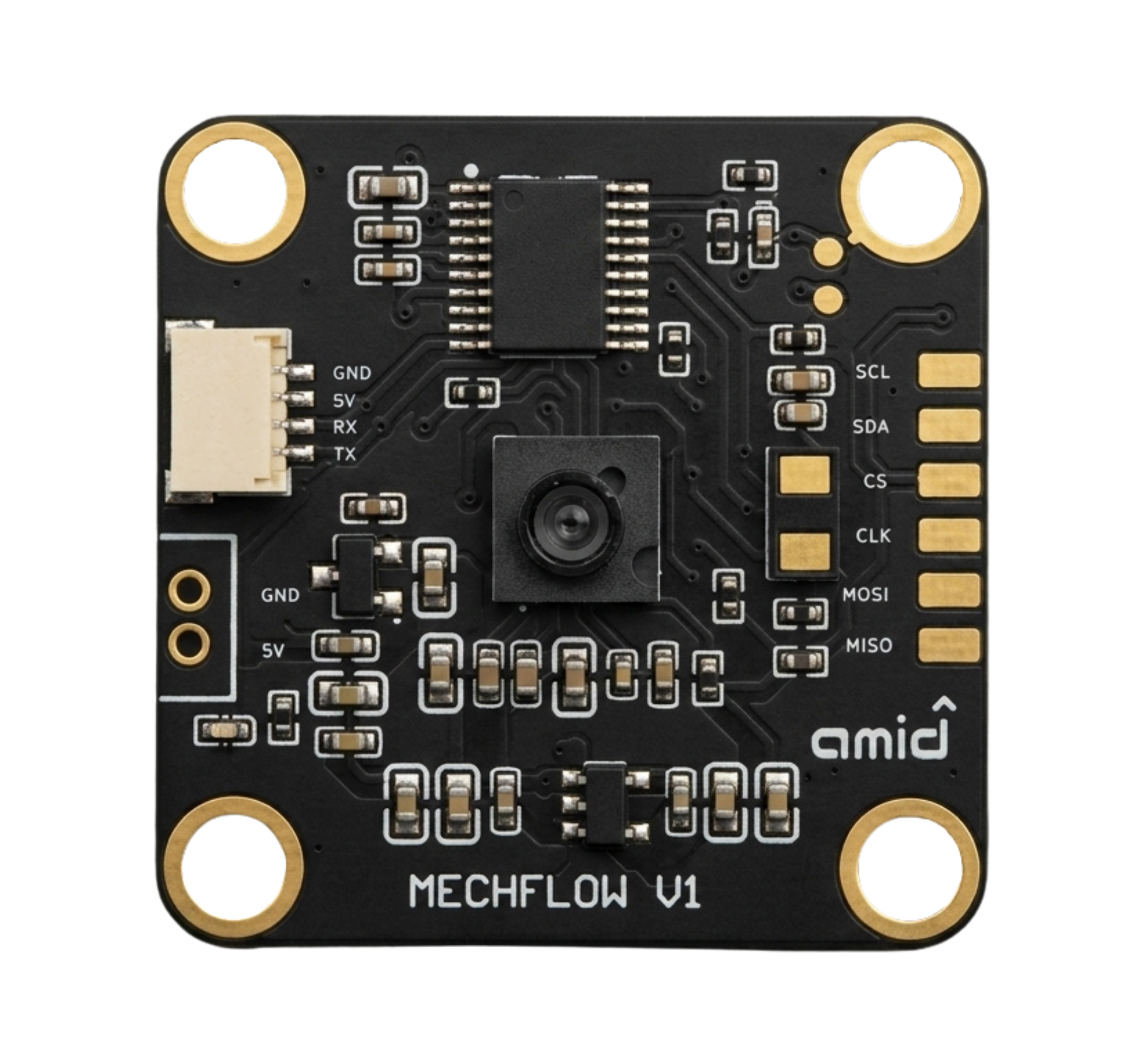

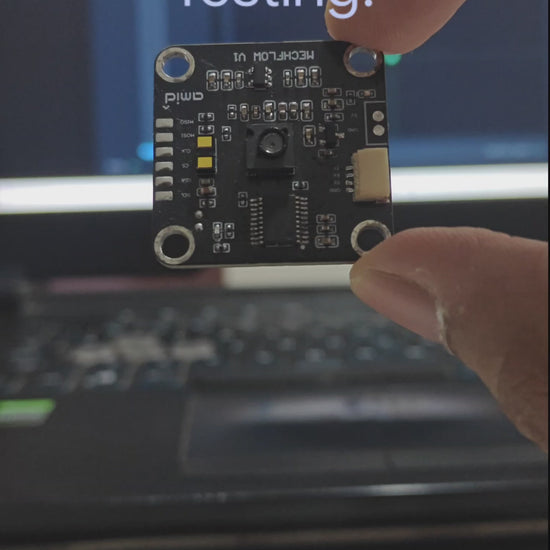

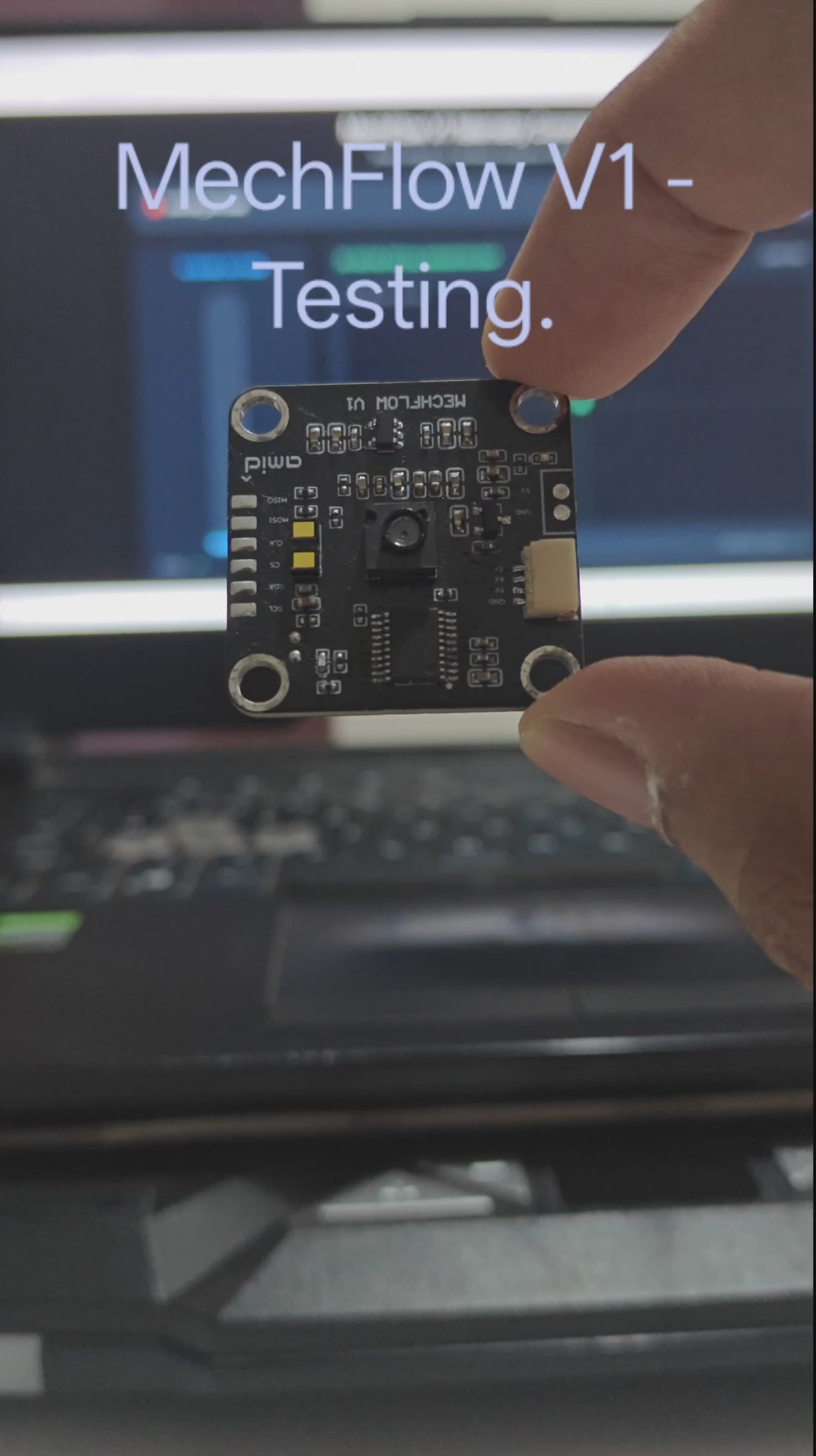

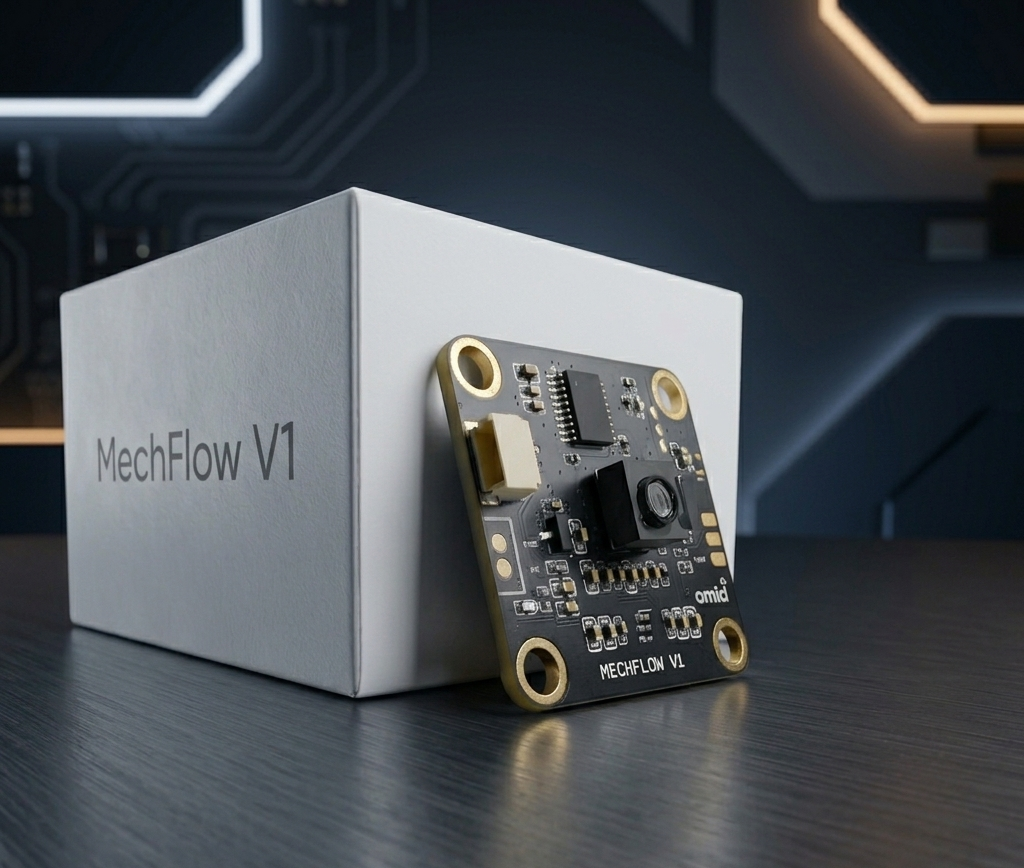

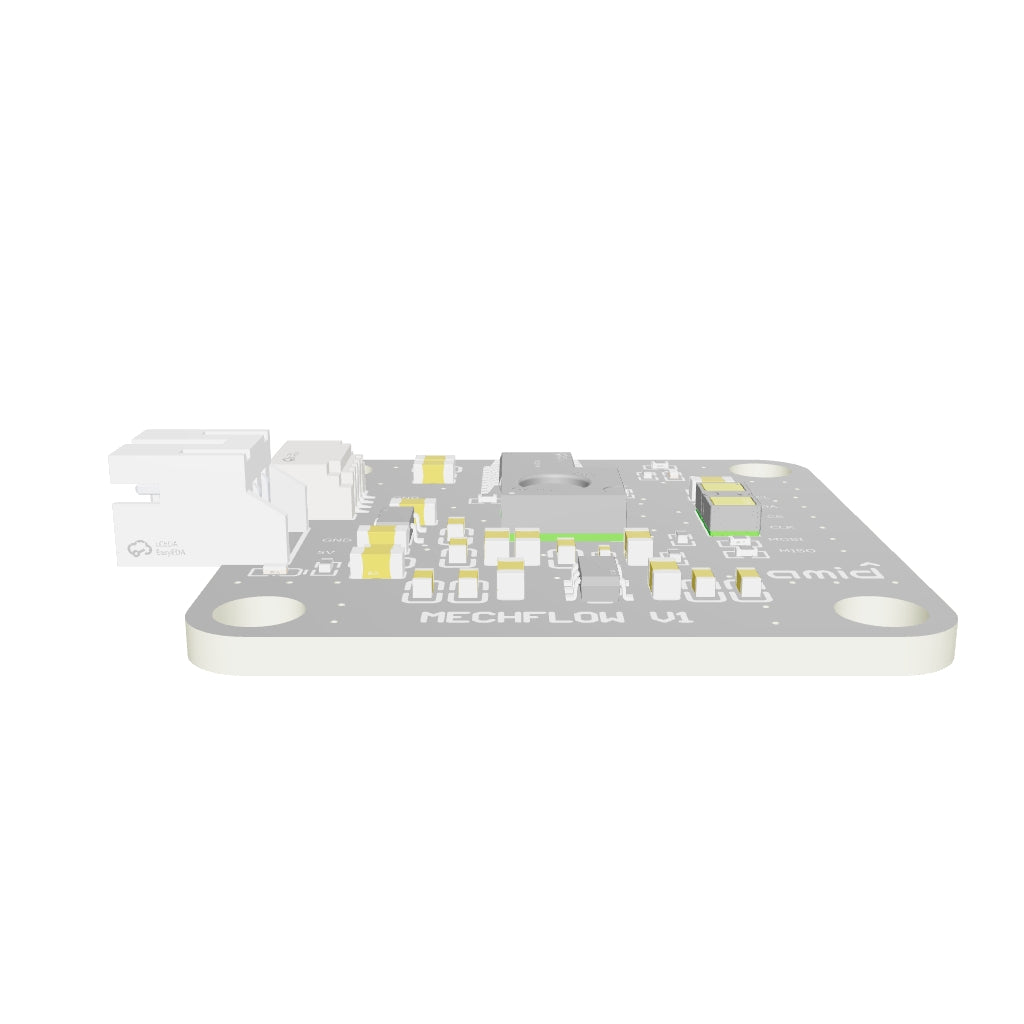

MechFlow V1 optical flow sensor board

Check Ardupilot Docs for MechFlow V1 here!

Datasheet: MechFlow V1 Datasheet

Test your MechFlow V1 sensor on the Mechintel Sensor Playground.

Overview

Achieve rock-solid position hold and sub-centimeter altitude stability without GPS.

The Mechintel Dual Optical Flow & DTOF LiDAR Module is an all-in-one vision-based navigation system engineered for micro-quadcopters, indoor drones, and autonomous mobile robots (AMRs). By fusing a high-speed downward-facing optical flow (PMW3901) sensor with a precision Direct Time-of-Flight (DTOF) laser rangefinder (VL53L1X), this module outputs real-time X/Y velocity vectors and absolute altitude (Z) data over a single UART interface.

Ideal for classroom STEM kits, university robotics labs, and custom ESP32, ArduPilot, PX4, and Arduino developer builds.

Key Features

  • Zero-GPS Indoor Loiter: Fly indoors or in GPS-denied environments with precision hover capability.
  • Integrated DTOF Laser Rangefinder: Eliminates altitude drift caused by barometer fluctuations or prop-wash, thanks to the ultra precise VL53L1X sensor.
  • Universal Compatibility: Outputs MSP and Mavlink protocol, which allows native support for ArduPilot, PX4, and custom microcontrollers (ESP32, STM32, Raspberry Pi Pico, Arduino).
  • Plug-and-Play Integration: Pre-calibrated optical alignment and integrated sensor fusion onboard—no complex optical lens alignment required.
  • Ultra-Compact & Lightweight: Engineered specifically for micro-frames where weight and power consumption are critical.
  • Dual Output Mode: Transmits synchronized X/Y pixel motion and distance data over standard serial (UART) or I2C/SPI protocols, which means one can directly access the attached sensors if required.

Technical Specifications

Parameter Specification
Optical Flow Sensor PMW3901 - High-speed spatial tracking engine
Altitude Ranging (DTOF) 0.05m to 4m (indoor/outdoor capable)
Output Data Rate 100 Hz update frequency
Interface Protocols UART (Serial) / I2C
Data Protocols MSP/Mavlink
Input Voltage 3.3V – 5.5V DC
Power Consumption < 120 mA @ 5V
Operating Temperature -10°C to +60°C
Weight 8g
Mounting holes 25x25mm
Dimensions 28x28mm

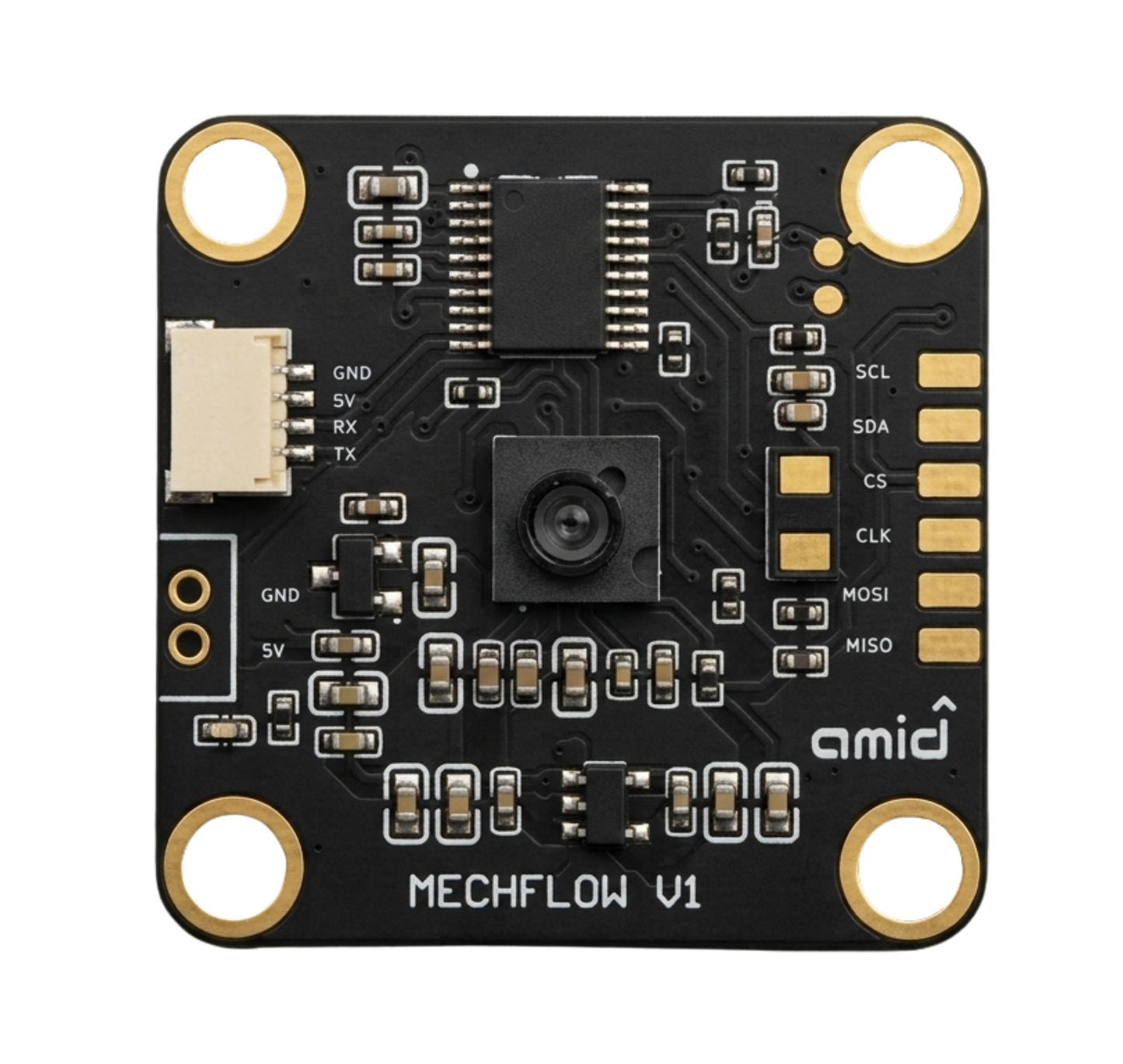

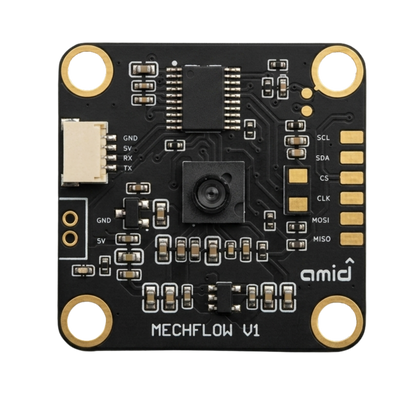

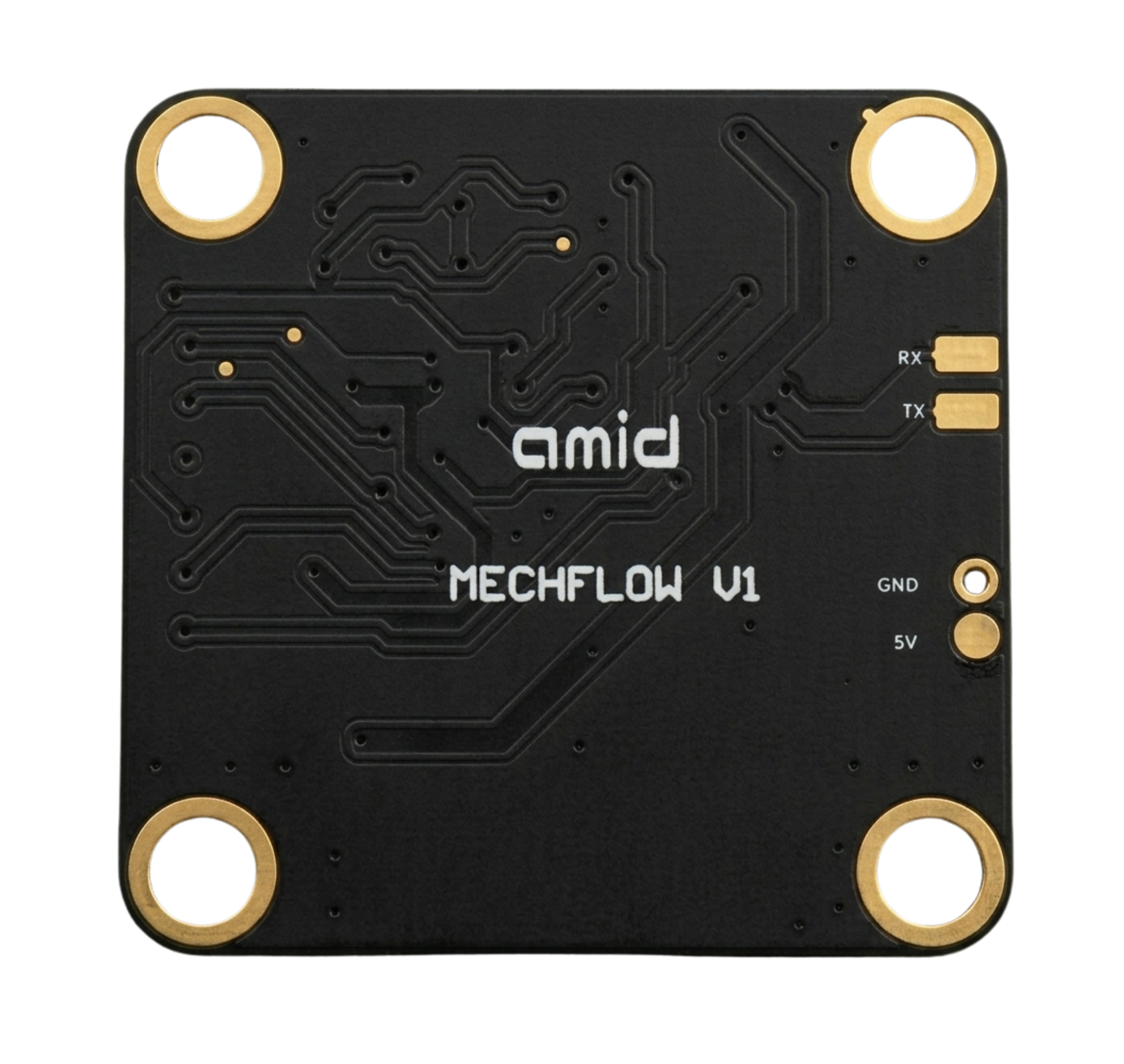

Pinout & Wiring Connections

Pin Name Function Connection Target
VCC Power Input 3.3V to 5V DC
GND Ground Common Ground
TX Data Transmit Flight Controller RX
RX Data/Command Receive Flight Controller TX

What’s Included in the Box

  • 1x Mechintel Optical Flow & DTOF LiDAR Board

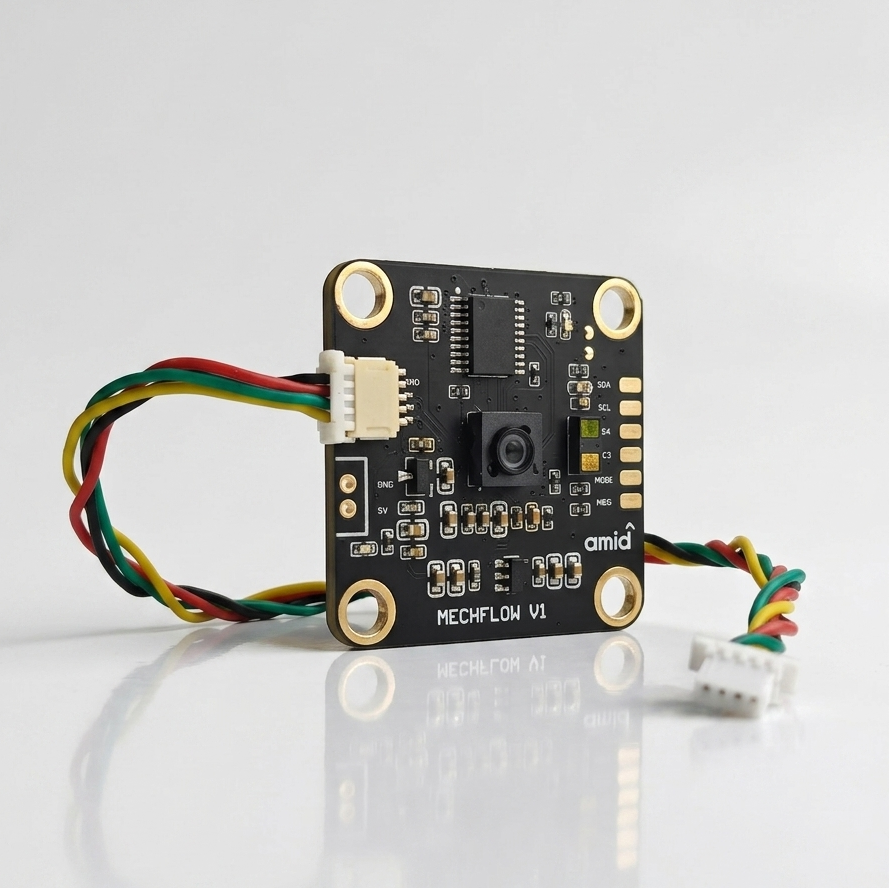

  • 1x JST-SH 4-Pin Cable Assembly (Pre-crimped)
  • 1x Quick Start & Firmware Documentation Access Card

Developer Resources

Access open-source C++ drivers, ESP32 Arduino libraries, and ArduPilot/PX4 setup guides on our official GitHub Repository.
